Products:
X-ray Equipment
PLX7000B High Frequency Mobile C-arm System (12KW, 160mA)
(Factory Price) $48,400 USD
Application:
This machine is widely applied in surgical department, orthopedic surgery, urinary surgery, spinal surgery, abdominal surgery, pain management, cardiology, gastroenterology department, and operating room, etc.
Features:
1) High-frequency generator with super high power and microfocus, optimizes digital images.
2) Leading world-class continuous pulse fluoroscopy, intelligent exposure control, achieving extremely low radiation dose.
3) Multi-working patterns to meet various clinical needs.
4) Multi-leaf and vertical light control reduce the soft X-ray effectively and the skin dose dramatically.
5) Imported well-known image intensifier and digital CCD camera provide high-quality and high-resolution images.
6) High-resolution and dual LCD monitors improve image quality dramatically.
7) Powerful digital graphic workstation with standard configuration of DICOM 3.0 connected to network perfectly supports dual registrations of work list registration and manual registration.
8) Workstation has high-capacity digital storage function, and fluoroscopy and digital spot film are stored in lossless digital format. It has powerful processing capabilities like edge enhancement, multiple images, gamma correction, cineloop, window center-window width, expert’s template, record, etc.
9) Four-dimensional electric motion control, accurate positioning, flexible and smooth. Large rack design provides a huge examining space and more comfortable surgery environment. Fresh designs and ideas bring you superior experience.
10) Two panels of human graphical LCD touch screen, intelligent and fast operation. Dual kinetic control system and double foot brake design for exposure, meeting the demands of clinical operations greatly.
Specifications:
Automatic, Manual Pulse Fluoroscopy:
Tube voltage：40 kV～125 kV
continuous adjustment
Tube current：0.3 mA～30 mA
continuous adjustment
Pulse frequency：1-25 frame
continuous adjustment
Radiography Tube Voltage, mA:
40kV～125kV, 160mA
C-arm:
Motorized forward and backward movement: 200 mm
Motorized rotation around horizontal axis: ±180°
Rotation around vertical axis: ±15°
Motorized slip on orbit: 120° (+90° ～ -30°)
Motorized ascending and descending of pillar: 400 mm
SID：1060 mm open：860 mm arc depth：700 mm
This machine is widely applied in surgical department, orthopedic surgery, urinary surgery, spinal surgery, abdominal surgery, pain management, cardiology, gastroenterology department, and operating room, etc.
Features:
1) High-frequency generator with super high power and microfocus, optimizes digital images.
2) Leading world-class continuous pulse fluoroscopy, intelligent exposure control, achieving extremely low radiation dose.
3) Multi-working patterns to meet various clinical needs.
4) Multi-leaf and vertical light control reduce the soft X-ray effectively and the skin dose dramatically.
5) Imported well-known image intensifier and digital CCD camera provide high-quality and high-resolution images.
6) High-resolution and dual LCD monitors improve image quality dramatically.
7) Powerful digital graphic workstation with standard configuration of DICOM 3.0 connected to network perfectly supports dual registrations of work list registration and manual registration.
8) Workstation has high-capacity digital storage function, and fluoroscopy and digital spot film are stored in lossless digital format. It has powerful processing capabilities like edge enhancement, multiple images, gamma correction, cineloop, window center-window width, expert’s template, record, etc.
9) Four-dimensional electric motion control, accurate positioning, flexible and smooth. Large rack design provides a huge examining space and more comfortable surgery environment. Fresh designs and ideas bring you superior experience.
10) Two panels of human graphical LCD touch screen, intelligent and fast operation. Dual kinetic control system and double foot brake design for exposure, meeting the demands of clinical operations greatly.
Specifications:
Automatic, Manual Pulse Fluoroscopy:
Tube voltage：40 kV～125 kV
continuous adjustment
Tube current：0.3 mA～30 mA
continuous adjustment
Pulse frequency：1-25 frame
continuous adjustment
Radiography Tube Voltage, mA:
40kV～125kV, 160mA
C-arm:
Motorized forward and backward movement: 200 mm
Motorized rotation around horizontal axis: ±180°
Rotation around vertical axis: ±15°
Motorized slip on orbit: 120° (+90° ～ -30°)
Motorized ascending and descending of pillar: 400 mm
SID：1060 mm open：860 mm arc depth：700 mm

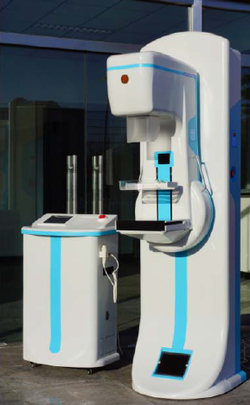

BTX-9800 Mammary X-ray Machine
(Factory Price) $23,500 USD
Applications:
· Detect galactocele accurately
· Detect intraductal papilloma
· Detect mammary duct ectasia and acute mastitis
· Detect proliferation of mammary gland and breast cancer
Features:
· New Modeling shell
· Three large full color LCD involved
· Touch screen
· Electric isocentric rotating U-arm with unique automatic back to center function
· Optional flexible compression systems
· Optional electric filter
· Optional digital imaging function: CR or DR
· Original mammary texture examination function
· Optional import all-solid transducer AEC
Main Technical Parameters:
. Power Output: 6.2 KW
. Dual-Focus: Small focus: 0.1 Large focus 0.3
. Frequency: > 40 KHz
. Anode Heat Storage: 210 KHU
· Detect galactocele accurately
· Detect intraductal papilloma
· Detect mammary duct ectasia and acute mastitis
· Detect proliferation of mammary gland and breast cancer
Features:
· New Modeling shell
· Three large full color LCD involved
· Touch screen
· Electric isocentric rotating U-arm with unique automatic back to center function
· Optional flexible compression systems
· Optional electric filter
· Optional digital imaging function: CR or DR
· Original mammary texture examination function
· Optional import all-solid transducer AEC
Main Technical Parameters:
. Power Output: 6.2 KW
. Dual-Focus: Small focus: 0.1 Large focus 0.3
. Frequency: > 40 KHz
. Anode Heat Storage: 210 KHU

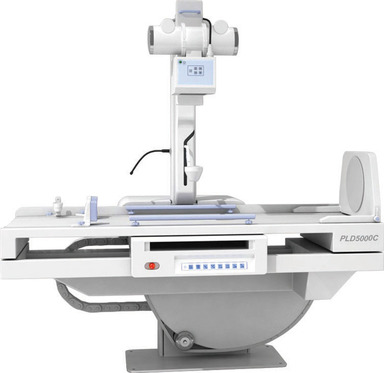

PLD 5000C Surgical X-ray Machine (500mA)
(Factory Price) $36,500 USD
Specifications:
Power Supply- Voltage: 380 V±38 V Frequency: 50 Hz ±1 Hz Capacity: = 40 kVA, Internal Resistance: = 0.170
Tube Voltage: 44 kV~125 kV, totally 41 grades
Tube Current: 32 mA~500 mA adjustable with different grades
Exposure time: 0.02 s~4 s, totally 21 grades; Control interface: touch-screen
Digital controlled X-ray tube:
Type: XD51-20, 40/125; Power output: 40 kW(max) 20 kW(min)
Anode thermal capacity: 100 kJ; Assembly thermal capacity: 900 kJ (1250 kHU)
Rotary anode speed: 2700 rpm; Tube focus: 2.0 (max) 1.0 (min)
Micro-controlled digital upper tube remote-controlled surgical bed:
Movement range: 90°~0°~25°
Bed transverse movement range distance: ±110mm
Portrait movement of photography frame and track spot film: = 720 mm
Photography dimension of whole film: 8”×10”~14” ×17”
Spot film division: whole film, 2-division film, 3-division film, 4-division film
Method to control bed: remote control, bed-control, Soft boot and stay of frequency conversion
Beam applicator: electrodynamics multi-pin
Bed-applied fixed bucky grid: Grid density: 103L/INCH
Grid ratio: 10:1, Focus distance: 120cm, 15” × 18”
Digital TV system:
. EGA: 9” Toshiba, High resolution CCD (digital camera); imported low-light 0.47 MEGA PILEXS.
. Monitor: 14” medical high definition monitor, horizontal central resolution 1000 thread, edge 800 thread, video wideband 12.5mHz, 50 bit, 25 pictures per second.
. Picture-process system: high definition and non-interlaced output, 8-grade noise reduction, 7 pictures in storage, LIH, mirror image rotation in vertical and horizontal, positive-negative image.
. OSD (monitor display).
Power Supply- Voltage: 380 V±38 V Frequency: 50 Hz ±1 Hz Capacity: = 40 kVA, Internal Resistance: = 0.170
Tube Voltage: 44 kV~125 kV, totally 41 grades
Tube Current: 32 mA~500 mA adjustable with different grades
Exposure time: 0.02 s~4 s, totally 21 grades; Control interface: touch-screen
Digital controlled X-ray tube:
Type: XD51-20, 40/125; Power output: 40 kW(max) 20 kW(min)
Anode thermal capacity: 100 kJ; Assembly thermal capacity: 900 kJ (1250 kHU)
Rotary anode speed: 2700 rpm; Tube focus: 2.0 (max) 1.0 (min)
Micro-controlled digital upper tube remote-controlled surgical bed:
Movement range: 90°~0°~25°
Bed transverse movement range distance: ±110mm
Portrait movement of photography frame and track spot film: = 720 mm
Photography dimension of whole film: 8”×10”~14” ×17”
Spot film division: whole film, 2-division film, 3-division film, 4-division film
Method to control bed: remote control, bed-control, Soft boot and stay of frequency conversion
Beam applicator: electrodynamics multi-pin
Bed-applied fixed bucky grid: Grid density: 103L/INCH
Grid ratio: 10:1, Focus distance: 120cm, 15” × 18”
Digital TV system:
. EGA: 9” Toshiba, High resolution CCD (digital camera); imported low-light 0.47 MEGA PILEXS.
. Monitor: 14” medical high definition monitor, horizontal central resolution 1000 thread, edge 800 thread, video wideband 12.5mHz, 50 bit, 25 pictures per second.
. Picture-process system: high definition and non-interlaced output, 8-grade noise reduction, 7 pictures in storage, LIH, mirror image rotation in vertical and horizontal, positive-negative image.
. OSD (monitor display).
Anaesthesia System
S6100 Anaesthesia System
(Factory Price) $8,950 USD
Applications:
S6100 anaesthesia system is used in the medical department for inhalation anaesthesia, control breathing or auxiliary breathing to patients and used for monitoring and displaying the patient's ventilation parameters.
Performance:
The electric, pneumatic control mode
Has a variety of alarm and protection function
Equipped with back-up battery
10.4’’ colorful LCD display: parameter of ventilation, alarming and oscillogram
Suitable for adults and children
Has many working modes, such as capacity control, pressure limit and so on....
Modular respiratory system
Working Conditions:
lAir source: O2, N2O, AIR
lAir Source Pressure: 280 kPa ~ 600 kPa
lPower supply: AC100-240 V, 50/60 Hz
Input power: 85 VA
S6100 anaesthesia system is used in the medical department for inhalation anaesthesia, control breathing or auxiliary breathing to patients and used for monitoring and displaying the patient's ventilation parameters.
Performance:
The electric, pneumatic control mode
Has a variety of alarm and protection function
Equipped with back-up battery
10.4’’ colorful LCD display: parameter of ventilation, alarming and oscillogram
Suitable for adults and children
Has many working modes, such as capacity control, pressure limit and so on....
Modular respiratory system
Working Conditions:
lAir source: O2, N2O, AIR
lAir Source Pressure: 280 kPa ~ 600 kPa
lPower supply: AC100-240 V, 50/60 Hz
Input power: 85 VA
Ventilator

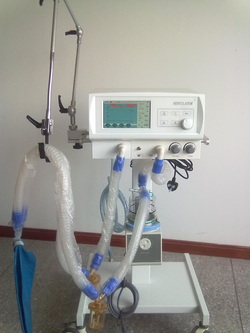

S1600 Ventilator
(Factory Price) $4,350 US
Applications:
Ventilation mode: ——IPPV
——A/C
——PCV
——SIMV
——CPAP
——MAUN
Ventilation Parameter Adjustment:
Frequency: Adjusting range 1 bpm ～ 100 bpm
(Under SIMV：1 bpm～ 20 bpm
All mode except SIMV：4 bpm ～ 100 b
----Allowable error ± 15 %
------Inhalation time（TI）
------Adjusting range 0 s ～ 6 s (4:1～ 1:8)
------Allowable error ± 15 %
-----Tidal volume（VT）
-----Adjusting range 0 ml ～1500 ml
-----Minute ventilation（MV）
-----Max MV ≥ 18 L/min
-----PEEP
-----Adjusting range 0 cm H2O ～ 20 cm H2O
Trigger（PTr）
-----Adjusting range 20 cm H2O ～ 0 cm H2O (PEEP)
------O2 concentration:
Adjusting range 45% ～ 100 %
Allowable error ± 20 %
-----Holding time（Inhalation platform）（TIP）
Adjusting range 0 ～ 3s (Less than 50% of inhalation time)
Max set working pressure
（pressure limit range） 20 cm H2O ～ 100 cm H2O
-----Max pressure ＜ 125cm H2O
-----Nebulizer gas maximum output pressure ≤ 0.2 MPa
maximum output flow ≥ 8 L/min
Ventilation mode: ——IPPV
——A/C
——PCV
——SIMV
——CPAP
——MAUN
Ventilation Parameter Adjustment:
Frequency: Adjusting range 1 bpm ～ 100 bpm
(Under SIMV：1 bpm～ 20 bpm
All mode except SIMV：4 bpm ～ 100 b
----Allowable error ± 15 %
------Inhalation time（TI）
------Adjusting range 0 s ～ 6 s (4:1～ 1:8)
------Allowable error ± 15 %
-----Tidal volume（VT）
-----Adjusting range 0 ml ～1500 ml
-----Minute ventilation（MV）
-----Max MV ≥ 18 L/min
-----PEEP
-----Adjusting range 0 cm H2O ～ 20 cm H2O
Trigger（PTr）
-----Adjusting range 20 cm H2O ～ 0 cm H2O (PEEP)
------O2 concentration:
Adjusting range 45% ～ 100 %
Allowable error ± 20 %
-----Holding time（Inhalation platform）（TIP）
Adjusting range 0 ～ 3s (Less than 50% of inhalation time)
Max set working pressure
（pressure limit range） 20 cm H2O ～ 100 cm H2O
-----Max pressure ＜ 125cm H2O
-----Nebulizer gas maximum output pressure ≤ 0.2 MPa
maximum output flow ≥ 8 L/min
Clinical lab devices
XFA6000 Auto Haematology Analyzer
(Factory Price) $3,560 USD
Features:
1. Voltage: AC 110-240V, 50 Hz
2. Test Speed: 60 samples/hour
3. Sample volume: Whole Blood 13 ul, Pre dilution 20 ul
4. Work mode : Double channel full-automatic detection and independent hemoglobin measurement system.
5. Quality-control mode: It has X-B,L-J quality-control mode, it can provide various calibration method.
6. Reagents: Open environmental reagents. Customer can buy reagents from their local market.
7. Data Storage : 20,000 samples. Also has intelligence data analysis, Review, test management functions.
8. Built-in thermal printer.
9. Data output : RS232 connector, printer connector, PS2, USB connector, Audio connector.
10. Print report : It can automatic switch internal thermal printer, and external thermal printer.
11. Reference Settings: System can setup and edit general use, male, female, children and babies' reference.12. Use impedance method for RBC and platelet count
12. Continuous Work Time > 8 hours
13. Optional integrated slide maker and on-board cytology atlas
14. Optional color printer an on-board diagnostics
15. Flow cytometry + laser light scatter + chemical dye method for WBC differential analysis
16. Fully automated with an autoloader and sampler
17. Should use both closed tube sampling and open tube sampling
18. Counting mode, whole blood and pre-diluted mode
19. with histograms and scatter grams for differential results
20. Automatic flagging system for abnormal results and automatic sample re-run
21. Automatic validation of results on a dedicated PC with at least a 10.4” color monitor
22. Operating temperature of 10 °C - 35 °C and humidity of up to 85%
1. Voltage: AC 110-240V, 50 Hz
2. Test Speed: 60 samples/hour
3. Sample volume: Whole Blood 13 ul, Pre dilution 20 ul
4. Work mode : Double channel full-automatic detection and independent hemoglobin measurement system.
5. Quality-control mode: It has X-B,L-J quality-control mode, it can provide various calibration method.
6. Reagents: Open environmental reagents. Customer can buy reagents from their local market.
7. Data Storage : 20,000 samples. Also has intelligence data analysis, Review, test management functions.
8. Built-in thermal printer.
9. Data output : RS232 connector, printer connector, PS2, USB connector, Audio connector.
10. Print report : It can automatic switch internal thermal printer, and external thermal printer.
11. Reference Settings: System can setup and edit general use, male, female, children and babies' reference.12. Use impedance method for RBC and platelet count
12. Continuous Work Time > 8 hours
13. Optional integrated slide maker and on-board cytology atlas
14. Optional color printer an on-board diagnostics
15. Flow cytometry + laser light scatter + chemical dye method for WBC differential analysis
16. Fully automated with an autoloader and sampler
17. Should use both closed tube sampling and open tube sampling
18. Counting mode, whole blood and pre-diluted mode
19. with histograms and scatter grams for differential results
20. Automatic flagging system for abnormal results and automatic sample re-run
21. Automatic validation of results on a dedicated PC with at least a 10.4” color monitor
22. Operating temperature of 10 °C - 35 °C and humidity of up to 85%

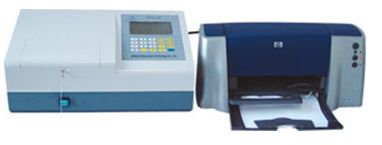

PUS-2018 Biochemistry Analyzer (with External Pinter)
(Factory Price) $1,640 USD
Applications:
PUS-2018 Semi-Biochemistry Analyzer can test glucose, sodium ions, potassium ion, liver function test, Chlorine, Ca2+ ion, phosphor, aspartate, alanine aminotransferase ratio, GGT, ALP, total cholesterol, triglyceride, high-density lipoprotein cholesterol, low-density lipoprotein cholesterol, apolipoprotein A, apolipoprotein B, lipoprotein A, cysteine protease and serum amylase.etc.
Specifications:
· Wavelength Range : 340 nm～750 nm
· Measurement Range : 0.001～3.000 Abs
· Precision : ±0.001 Abs
· Repeatability : ≤ 0.005 Abs
· Linearity : ≤ ±1%
· Cross-contamination : ≤ 1%
· Temperature Accuracy : ±0.1℃
· Test Temperature : 25℃, 30℃, 37℃
· Test Method: end-point, kinetic, two-point, standard curve and simple/double wavelength exam.
· Colorimetric Pool : Titanium alloy
· Reagent : 400 μl ～ 800 μl Match all kinds of reagent
· Sample volume : 20 ～ 50 μl
· Display : Photometric absorbance, density, active unit, and normal parameters
Technical Specifications:
Range of working wavelength: 340 nm ~ 750 nm
Range of absorbance: 0.000 ～ 3.000 A
Wavelength range: 340-750 nm
Center wavelength accuracy: ± 3.0
Linearity: ≤ 1%
Repeatability: ≤ 0.005 Abs
Stability: ≤ 0.01 Abs
Stray light: ≥ 2.0 Abs（340 nm）
Cross pollution rate: ≤ 1%（Aspiration volume 600 ul）
Test temperature: 37℃, 30℃, 25℃
Accuracy error of test temperature: ± 0.2℃
Other configurations:
1. Print: Internal print
2. Communication: RS232 serial port
3. Volume: 565 × 410 × 290 mm
4. Weight: 9 Kg;
5. Fuse:φ5×20 2A
Working Conditions:
Temperature: 10 ～30℃
Relative humidity: <= 70%
Power supply: 220×（1±10%）V, 50×（1 ± 2%）Hz
Input power: 160 VA
Warm-up time: 10 min
PUS-2018 Semi-Biochemistry Analyzer can test glucose, sodium ions, potassium ion, liver function test, Chlorine, Ca2+ ion, phosphor, aspartate, alanine aminotransferase ratio, GGT, ALP, total cholesterol, triglyceride, high-density lipoprotein cholesterol, low-density lipoprotein cholesterol, apolipoprotein A, apolipoprotein B, lipoprotein A, cysteine protease and serum amylase.etc.
Specifications:
· Wavelength Range : 340 nm～750 nm
· Measurement Range : 0.001～3.000 Abs
· Precision : ±0.001 Abs
· Repeatability : ≤ 0.005 Abs
· Linearity : ≤ ±1%
· Cross-contamination : ≤ 1%
· Temperature Accuracy : ±0.1℃
· Test Temperature : 25℃, 30℃, 37℃
· Test Method: end-point, kinetic, two-point, standard curve and simple/double wavelength exam.
· Colorimetric Pool : Titanium alloy
· Reagent : 400 μl ～ 800 μl Match all kinds of reagent
· Sample volume : 20 ～ 50 μl
· Display : Photometric absorbance, density, active unit, and normal parameters
Technical Specifications:
Range of working wavelength: 340 nm ~ 750 nm
Range of absorbance: 0.000 ～ 3.000 A
Wavelength range: 340-750 nm
Center wavelength accuracy: ± 3.0
Linearity: ≤ 1%
Repeatability: ≤ 0.005 Abs
Stability: ≤ 0.01 Abs
Stray light: ≥ 2.0 Abs（340 nm）
Cross pollution rate: ≤ 1%（Aspiration volume 600 ul）
Test temperature: 37℃, 30℃, 25℃
Accuracy error of test temperature: ± 0.2℃
Other configurations:
1. Print: Internal print
2. Communication: RS232 serial port
3. Volume: 565 × 410 × 290 mm
4. Weight: 9 Kg;
5. Fuse:φ5×20 2A
Working Conditions:
Temperature: 10 ～30℃
Relative humidity: <= 70%
Power supply: 220×（1±10%）V, 50×（1 ± 2%）Hz
Input power: 160 VA
Warm-up time: 10 min
Patient Monitor
JP2000-09 Patient Monitor
(Factory Price) $850 USD
Specifications:
JP2000-09 patient monitor is a smart monitor with original appearance, small size and light weight.
The embedded system and low power consuming design make JP2000-09 patient monitor more stable and safe.
The advanced technology and modern monitoring method distinguish JP2000-09 patient monitor from others and offer the most at the best price.
Suitable for adult child and baby (no fetus).
Can work in ICU, operation room, ambulance.
Elemental Functions: Monitor the patient sign of ECG, Respiration, NIBP, SpO2, Heart Rate, temperature. With Li-ion battery inside and can work without AC-power for 3 hours.
Optional Functions: Portable printer
Features:
1) Size of Screen: Brilliant 14〞TFT Color LCD with resolution of 1024*768.
2) Waveform display: 8 channel waveform display in screen with the waveforms of ECG, Respiration, NIBP and SpO2 with E-manual embedded, Can work with portable printer.
3) Alarm System: Voice alarming system, Light and sound alarming.
4) Expert Low power cost: 15 W. Portable long life Li-ion battery with smart management of charge and power consume, can work without AC power up to 3 hours.
5) ECG: 3 channel ST segment analysis. Resist 50 Hz AC disturbance, can work with electrosurgical unit and de-trembling.
6) Can auto identify the measurement of baby child and adult; can display the waveform of blood pressure; can display the result with mmHg / kPa simultaneously in screen.
7) Can resist the disturbance of the patient movement.
8) Can display the chart of previous data of Heart Rate, VPC, three Level ST Segment, NIBP, SpO2, Pulse Rate, Respiration Rate and Temperature in 96 hours.
9) Size: 320 * 280 * 120 mm, weight: 5 Kg (With Li-ion battery).
JP2000-09 patient monitor is a smart monitor with original appearance, small size and light weight.
The embedded system and low power consuming design make JP2000-09 patient monitor more stable and safe.
The advanced technology and modern monitoring method distinguish JP2000-09 patient monitor from others and offer the most at the best price.
Suitable for adult child and baby (no fetus).
Can work in ICU, operation room, ambulance.
Elemental Functions: Monitor the patient sign of ECG, Respiration, NIBP, SpO2, Heart Rate, temperature. With Li-ion battery inside and can work without AC-power for 3 hours.
Optional Functions: Portable printer
Features:
1) Size of Screen: Brilliant 14〞TFT Color LCD with resolution of 1024*768.
2) Waveform display: 8 channel waveform display in screen with the waveforms of ECG, Respiration, NIBP and SpO2 with E-manual embedded, Can work with portable printer.
3) Alarm System: Voice alarming system, Light and sound alarming.
4) Expert Low power cost: 15 W. Portable long life Li-ion battery with smart management of charge and power consume, can work without AC power up to 3 hours.
5) ECG: 3 channel ST segment analysis. Resist 50 Hz AC disturbance, can work with electrosurgical unit and de-trembling.
6) Can auto identify the measurement of baby child and adult; can display the waveform of blood pressure; can display the result with mmHg / kPa simultaneously in screen.
7) Can resist the disturbance of the patient movement.
8) Can display the chart of previous data of Heart Rate, VPC, three Level ST Segment, NIBP, SpO2, Pulse Rate, Respiration Rate and Temperature in 96 hours.
9) Size: 320 * 280 * 120 mm, weight: 5 Kg (With Li-ion battery).

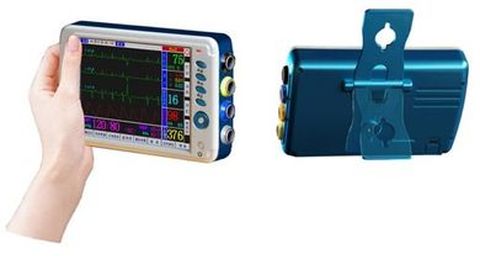

JP2000-07 Patient Monitor
(Factory Price) $750 USD
Specifications:
Portable-focused design, with smart size of 180×120×35 mm and light weight of 0.5 kg. Be competent for outside environment with long life Li-battery.
· The GSM wireless communication system can transmit the data of ECG, NIBP, SpO2, respiration, heart rate and temperature to the termination such as mobile phone. This system can also help to modify the data setting of monitor and start up NIBP measuring process. The real time idea of monitoring save the time of response which enhance the chance of rescue patient.
· 7 leads ECG display which sustain the expanded low frequency response in the mode of monitoring and diagnosis. 3 channel ST segment analysis and function of arrhythmia analysis enhance the accuracy of the measurement of ECG.
· The advanced one-step method can identify the blood pressure of adult child and baby automatically and display the blood pressure waveform in screen. This method can subtly comfort the feeling of patient because the precision of the measure can be enhanced, the
measure time can be evidently reduced and the pressure impact to patient can be alleviated.
· The human-speech for alarming improve the limit of the alarming system which traditionally according to the light and message reminding. This function can offer the circumstances of patient more direct and help the doctor to concentrate on operation and work. The novel method of alarming enhance the practicability of JP series monitor especially in complex instance.
· Enable to connect with central monitor system, support the wire and wireless connection.
· The self-automatic store system helps to save the data when power is cut off. So the data will never be lost.
· The shelf in the back of the monitor is designed for setting of shelves and hanging. The multi-purpose designs for setting enlarge the range of utilization of this monitor.
Descriptions:
· Size of Screen: 6〞TFT Color LCD with resolution of 640*48.0
· Waveform display: 4 channel waveform display in screen with the waveforms of ECG.
· Respiration, NIBP and SpO2 with E-manual embedded, it can work with portable printer.
· Alarm System: Voice alarming system, Light and sound alarming.
· Expert Low power cost: 4W. Portable long life Li-ion battery with smart management of charge and power consume, can work without AC power longer than 3 hours.
· ECG: 3 channel ST segment analysis.
· Resist 50Hz AC disturbance, can work with electrosurgical unit and de-trembling
· NIBP: Measure Method: Advanced One-step Method.
· Can auto identify the measurement of baby child and adult.
· Can display the waveform of blood pressure.
· Can display the result with mmHg/kPa simultaneously in screen
· Can resist the disturbance of the patient movement.
· Can display the chart of previous data of Heart Rate, VPC, three Level ST Segment, NIBP, SpO2, Pulse Rate, Respiration Rate and Temperature in 1-96 hours.
· Size: 185 * 120 * 35 mm
· Weight: 0.56 Kg (With Li-ion battery)
Portable-focused design, with smart size of 180×120×35 mm and light weight of 0.5 kg. Be competent for outside environment with long life Li-battery.
· The GSM wireless communication system can transmit the data of ECG, NIBP, SpO2, respiration, heart rate and temperature to the termination such as mobile phone. This system can also help to modify the data setting of monitor and start up NIBP measuring process. The real time idea of monitoring save the time of response which enhance the chance of rescue patient.
· 7 leads ECG display which sustain the expanded low frequency response in the mode of monitoring and diagnosis. 3 channel ST segment analysis and function of arrhythmia analysis enhance the accuracy of the measurement of ECG.
· The advanced one-step method can identify the blood pressure of adult child and baby automatically and display the blood pressure waveform in screen. This method can subtly comfort the feeling of patient because the precision of the measure can be enhanced, the
measure time can be evidently reduced and the pressure impact to patient can be alleviated.
· The human-speech for alarming improve the limit of the alarming system which traditionally according to the light and message reminding. This function can offer the circumstances of patient more direct and help the doctor to concentrate on operation and work. The novel method of alarming enhance the practicability of JP series monitor especially in complex instance.
· Enable to connect with central monitor system, support the wire and wireless connection.
· The self-automatic store system helps to save the data when power is cut off. So the data will never be lost.
· The shelf in the back of the monitor is designed for setting of shelves and hanging. The multi-purpose designs for setting enlarge the range of utilization of this monitor.
Descriptions:
· Size of Screen: 6〞TFT Color LCD with resolution of 640*48.0
· Waveform display: 4 channel waveform display in screen with the waveforms of ECG.
· Respiration, NIBP and SpO2 with E-manual embedded, it can work with portable printer.
· Alarm System: Voice alarming system, Light and sound alarming.
· Expert Low power cost: 4W. Portable long life Li-ion battery with smart management of charge and power consume, can work without AC power longer than 3 hours.
· ECG: 3 channel ST segment analysis.
· Resist 50Hz AC disturbance, can work with electrosurgical unit and de-trembling
· NIBP: Measure Method: Advanced One-step Method.
· Can auto identify the measurement of baby child and adult.
· Can display the waveform of blood pressure.
· Can display the result with mmHg/kPa simultaneously in screen
· Can resist the disturbance of the patient movement.
· Can display the chart of previous data of Heart Rate, VPC, three Level ST Segment, NIBP, SpO2, Pulse Rate, Respiration Rate and Temperature in 1-96 hours.
· Size: 185 * 120 * 35 mm
· Weight: 0.56 Kg (With Li-ion battery)

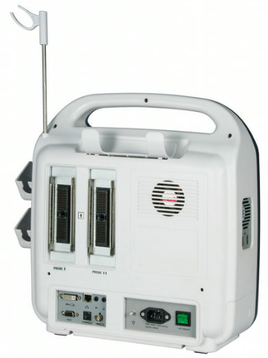

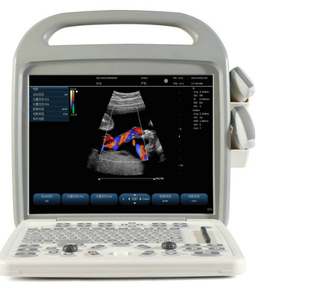

New Portable Color Doppler Ultrasound Systems ((((NEW))))
(((((Contact Us for a Quote)))))
Features:
Advanced Imaging Technologies
1) High precision dynamic focus imaging
2) Spacial compound imaging
3) Frequency compound imaging
4) Pulse-inverted tissue harmonic imaging
5) Speckle noise rejection technology
6) Color Doppler enhancement technology
7) Multi-beam parallel processing technology
Comprehensive Clinical Application Solutions
1) Transducers with broad frequency band and variable frequencies
2) Automatic trace on PW frequency map
3) 2D, color and Doppler frequency conversion
4) Real time dual-display 2D images and color flow images
5) Nice English operation interface, and support many kinds of typewriting
6) One key saving and restoring image parameters can effectively shorten the operating time
7) Play back large amount of cines
8) Quick start-up
9) Automatic standby protects the host and the transducers and prolongs the system lifespan
10) Measurement software packages of all parts meet with clinical needs of different applications
11) Large capacity removable built-in battery supports long time outdoor operation
Specifications
- Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW
- Scanning mode: Convex, Linear, Endocavity
- Gray scale levels: 256
- Display: 15 '' high resolution LCD monitor
- Transducer Connector: 2 standards
- Scanning depth: up to 351mm
- Physical channels: 64
- Transducer element: 128
- Dynamic imaging technologies: Yes
- Digital Beam-forming: Yes
- Digital Frequency Scan: Yes
- Dynamic Receiving focusing: Yes
- Real-time Dynamic Aperture: Yes
Advanced Imaging Technologies
1) High precision dynamic focus imaging
2) Spacial compound imaging
3) Frequency compound imaging
4) Pulse-inverted tissue harmonic imaging
5) Speckle noise rejection technology
6) Color Doppler enhancement technology
7) Multi-beam parallel processing technology
Comprehensive Clinical Application Solutions
1) Transducers with broad frequency band and variable frequencies
2) Automatic trace on PW frequency map
3) 2D, color and Doppler frequency conversion
4) Real time dual-display 2D images and color flow images
5) Nice English operation interface, and support many kinds of typewriting
6) One key saving and restoring image parameters can effectively shorten the operating time
7) Play back large amount of cines
8) Quick start-up
9) Automatic standby protects the host and the transducers and prolongs the system lifespan
10) Measurement software packages of all parts meet with clinical needs of different applications
11) Large capacity removable built-in battery supports long time outdoor operation
Specifications
- Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW
- Scanning mode: Convex, Linear, Endocavity
- Gray scale levels: 256
- Display: 15 '' high resolution LCD monitor
- Transducer Connector: 2 standards
- Scanning depth: up to 351mm
- Physical channels: 64
- Transducer element: 128
- Dynamic imaging technologies: Yes
- Digital Beam-forming: Yes
- Digital Frequency Scan: Yes
- Dynamic Receiving focusing: Yes
- Real-time Dynamic Aperture: Yes
